norm |
12T |
|
|
Maximum operating radius |
19m |
|
|
Maximum above ground lift |
21m |
|
|
winches
|
Hook Rising Speed |
10m/min (4 ropes) Two-speed |
|
Winches specifications |
12T |
|
|
Wire Rope Specifications |
Φ12mm×120m |
|
|
Telescopic
|
Telescopic arm form |
5m x 5-section boom (customizable) |
|
Telescopic arm length |
5.5m-21m |
|
|
Boom length/time |
12.3m/60sec (adjustable) |
|
|
luffing device |
Boom angle/time |
0-78°/17sec |
|
cyclotron |
Rotation angle/speed |
0-360° (continuous)/42sec |
|
Outrigger
|
Forms of outrigger movement |
Manual screw out + hydraulic telescopic + hydraulic support |
|
Maximum extension amplitude (mm) |
7600 (length) X5600 (rear) X6700 (front) |
|
|
Running Gear
|
Crawler structure |
Steel tracks |
|
Walking mode |
hydraulic drive |
|
|
Walking speed |
0-2.5km/h |
|
|
Gradeability |
25°(36%) |
|
|
Engine
|
Manufacturer |
Yunai (customizable) 76kw |
|
Start mode |
electric start |
|
|
Start performance |
-50°C-45°C |
|
|
Fuel/Volume |
Diesel/40L |
|
|
Battery capacity |
24v 45AH |
|
|
emission standard |
National Phase II |
|
|
Operating
|
Type of operation (boom/outrigger), manual traveling |
Manual operation, manual travel (optional remote control operation) |
|
Operational |
Manual operation (remote operation optional) |
|
|

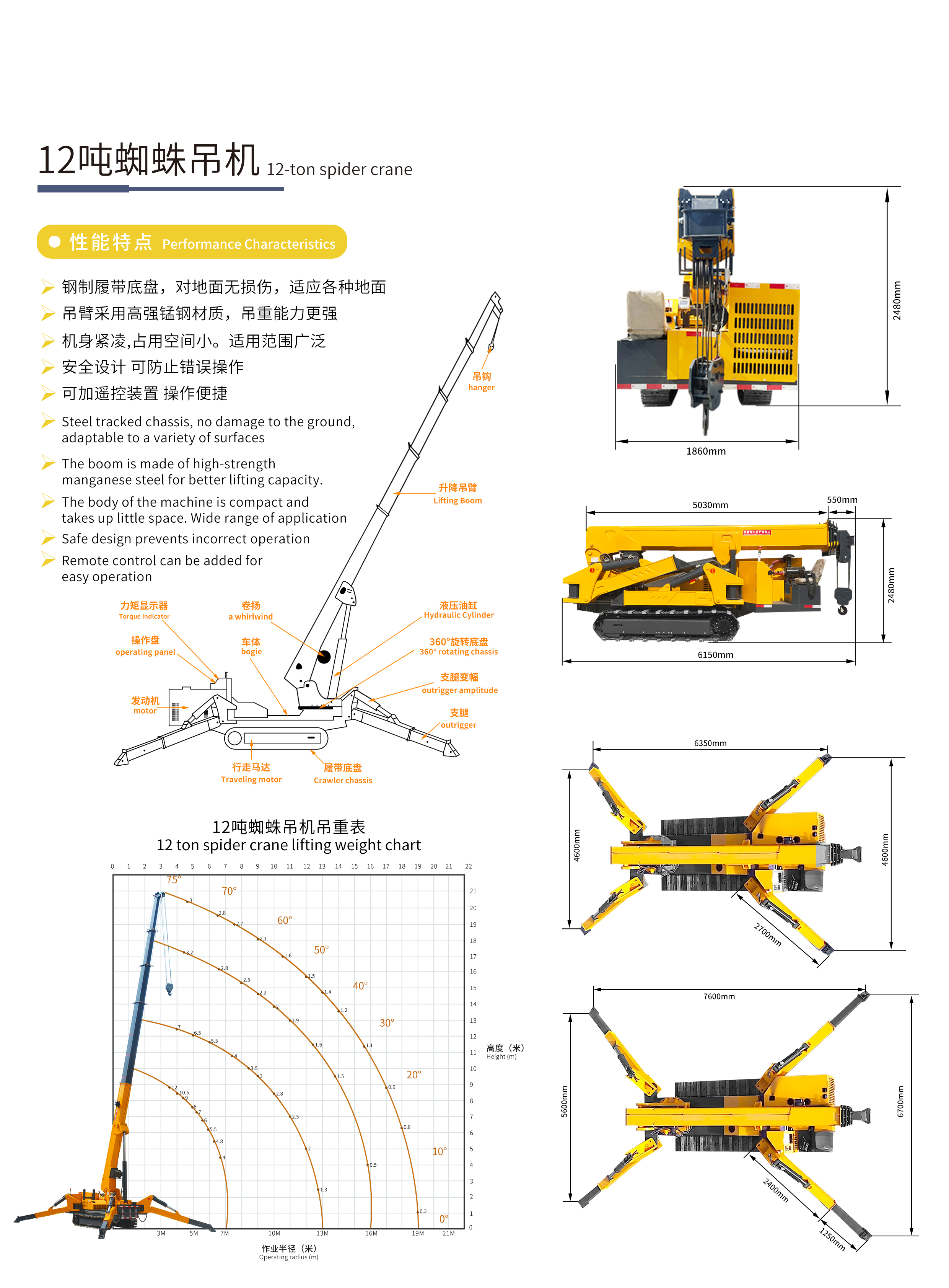

Vehicle size |
Length 6.15m Width 1.86m Height 2.48m |
|
|
Self-weight (T) |
12.5T |
|
|
Optional |
Optional torque controller/remote control/cradle/hydraulic flying jib/colors: red, green, yellow, white, grey, black |
|
