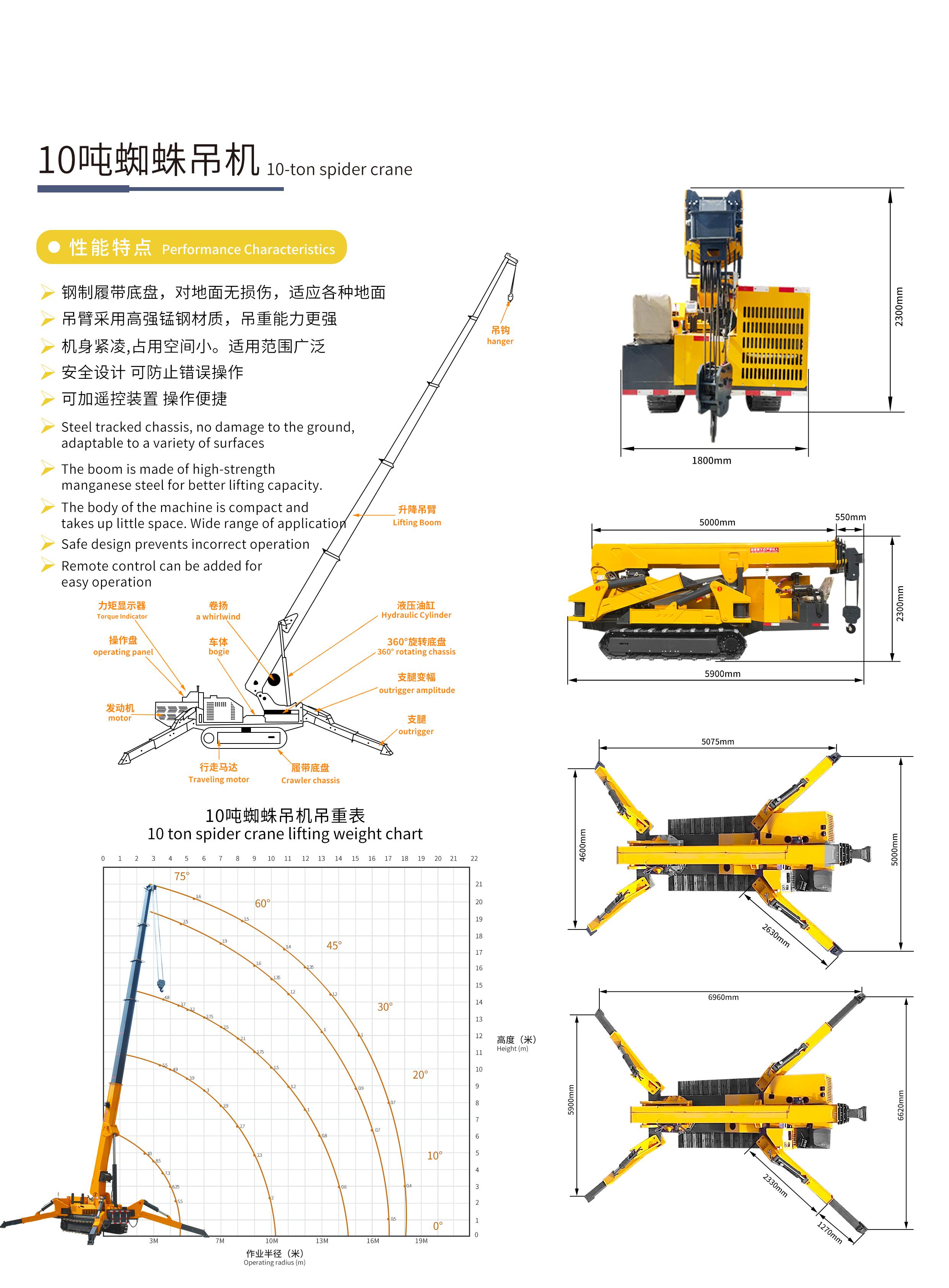

norm |
10T |
|
|
Maximum operating radius |
18m |
|
|
Maximum above ground lift |
21m |
|
|
winches |
Hook Rising Speed |
11m/min (4 ropes) Two-speed |
|
Winches specifications |
10T |
|
|
Wire Rope Specifications |
12mm×100m |
|
|
Telescopic |
Telescopic arm form |
5m x 5-section boom (customizable) |
|
Telescopic arm length |
5.5m-21m |
|
|
Boom length/time |
12.3m/58sec (adjustable) |
|
|
luffing device |
Boom angle/time |
0-78°/15sec |
|
cyclotron |
Rotation angle/speed |
0-360° (continuous)/40sec |
|
Outrigger |
Forms of outrigger movement |
Manual screw out + hydraulic telescopic + hydraulic support |
|
Maximum extension amplitude (mm) |
6960 (length) X5900 (rear) X6620 (front) |
|
|
Running Gear |
Crawler structure |
Steel tracks |
|
Walking mode |
hydraulic drive |
|
|
Walking speed |
0-2.5km/h |
|
|
Gradeability |
25°(36%) |
|
|
Track |
300 (width) 135 (pitch) 41 (section) |
|
|
Engine |
Manufacturer |
Yunai (customizable) 76kw |
|
|
Start mode |
electric start |
|
|
Start performance |
-50°C-45°C |
|
|
Fuel/Volume |
Diesel/40L |
|
|
Battery capacity |
24v 45AH |
|
|
emission standard |
National Phase II |
|
Operating |
Type of operation (boom/outrigger), manual traveling |
Manual operation, manual travel (optional remote control operation) |
|
|
Operational |
Manual operation (remote operation optional) |
|
Vehicle size |
Length 5.9m Width 1.8m Height 2.3m |
|
|
Self-weight (T) |
10.5T |
|
|
Optional |
Optional torque controller/remote control/cradle/hydraulic flying jib/colors: red, green, yellow, white, grey, black |
|
